vastorbit.machine_learning.memmodel.ensemble.GradientBoostingClassifier

class vastorbit.machine_learning.memmodel.ensemble.GradientBoostingClassifier(trees: list[BinaryTreeRegressor], logodds: Annotated[list | ndarray, 'Array Like Structure'], classes: Annotated[list | ndarray, 'Array Like Structure'] | None = None, learning_rate: float = 1.0)

InMemoryModel implementation of the GradientBoosting classifier algorithm.

Parameters:

• trees (list[BinaryTreeRegressor]) – list of BinaryTree for regression.

• logodds (ArrayLike[float], optional) – ArrayLike of the logodds of the response classes.

• classes (ArrayLike, optional) – The model’s classes.

• learning_rate (float, optional) – Learning rate.

Variables:

• input (Attributes are identical to the)

• underscore (parameters, followed by an)

• ('_').

Examples

Initalization

A GradientBoostingClassifier model is an ensemble of multiple binary tree classifier models. In this example, we will create three BinaryTreeClassifier models:

from vastorbit.machine_learning.memmodel.tree import BinaryTreeClassifier

model1 = BinaryTreeClassifier(
    children_left = [1, 3, None, None, None],
    children_right = [2, 4, None, None, None],
    feature = [0, 1, None, None, None],
    threshold = ["female", 30, None, None, None],
    value = [
        None,
        None,
        [0.8, 0.1, 0.1],
        [0.1, 0.8, 0.1],
        [0.2, 0.2, 0.6],
    ],
    classes = ["a", "b", "c"]
)
model2 = BinaryTreeClassifier(
    children_left = [1, 3, None, None, None],
    children_right = [2, 4, None, None, None],
    feature = [0, 1, None, None, None],
    threshold = ["female", 30, None, None, None],
    value = [
        None,
        None,
        [0.7, 0.2, 0.1],
        [0.3, 0.5, 0.2],
        [0.2, 0.2, 0.6],
    ],
    classes = ["a", "b", "c"],
)
model3 = BinaryTreeClassifier(
    children_left = [1, 3, None, None, None],
    children_right = [2, 4, None, None, None],
    feature = [0, 1, None, None, None],
    threshold = ["female", 30, None, None, None],
    value = [
        None,
        None,
        [0.4, 0.4, 0.2],
        [0.2, 0.2, 0.6],
        [0.2, 0.5, 0.3],
    ],
    classes = ["a", "b", "c"],
)

Now we will use above models to create GradientBoostingClassifier model.

from vastorbit.machine_learning.memmodel.ensemble import GradientBoostingClassifier

model_gbc = GradientBoostingClassifier(
    trees = [model1, model2, model3],
    classes = ["a", "b", "c"],
    logodds = [0.1, 0.12, 0.15],
    learning_rate = 0.1,
)

Note

We have used logodds that represents logodds of the response column and learning_rate that represents learning rate of GradientBoosting regressor model. Both are optional parameters.

Create a dataset.

data = [["male", 100], ["female", 20], ["female", 50]]

Making In-Memory Predictions

Use predict() method to do predictions.

model_gbc.predict(data)

Use predict_proba() method to compute the predicted probabilities for each class.

model_gbc.predict_proba(data)

Deploy SQL Code

Let’s use the following column names:

cnames = ["sex", "fare"]

Use predict_sql() method to get the SQL code needed to deploy the model using its attributes.

model_gbc.predict_sql(cnames)

Use predict_proba_sql() method to get the SQL code needed to deploy the model probabilities using its attributes.

model_gbc.predict_proba_sql(cnames)

Hint

This object can be pickled and used in any in-memory environment, just like scikit-learn models.

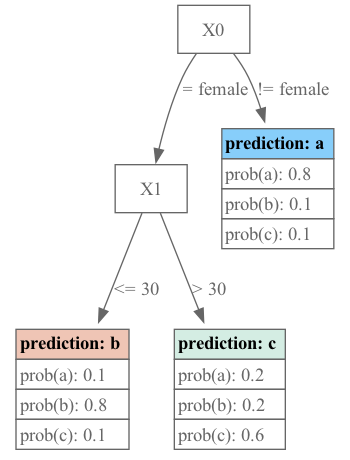

Drawing Trees

Use plot_tree() method to draw the input tree.

model_gbc.plot_tree(tree_id = 0)

Important

plot_tree() requires the Graphviz module.

Note

The above example is a very basic one. For other more detailed examples and customization options, please see Machine Learning - Tree Plots

__init__(trees: list[BinaryTreeRegressor], logodds: Annotated[list | ndarray, 'Array Like Structure'], classes: Annotated[list | ndarray, 'Array Like Structure'] | None = None, learning_rate: float = 1.0) → None

Methods

__init__(trees, logodds[, classes, ...])
get_attributes()	Returns the model attributes.
plot_tree([pic_path, tree_id])	Draws the input tree.
predict(X)	Predicts using the input matrix.
predict_proba(X)	Computes the model's probabilites using the input matrix.
predict_proba_sql(X)	Returns the SQL code needed to deploy the model using its attributes.
predict_sql(X)	Returns the SQL code needed to deploy the model.
set_attributes(**kwargs)	Sets the model attributes.

Attributes

object_type

Must be overridden in child class
