Vector DB Quickstart

Prerequisites

Ensure you have followed the instructions Query Engine to setup the query engine and download the adbc driver.

!pip install vastdb pyarrow adbc_driver_manager numpy

Requirement already satisfied: vastdb in /opt/conda/lib/python3.11/site-packages (2.0.0)
Requirement already satisfied: pyarrow in /opt/conda/lib/python3.11/site-packages (18.1.0)
Requirement already satisfied: adbc_driver_manager in /opt/conda/lib/python3.11/site-packages (1.8.0)
Requirement already satisfied: numpy in /opt/conda/lib/python3.11/site-packages (1.24.4)
Requirement already satisfied: aws-requests-auth in /opt/conda/lib/python3.11/site-packages (from vastdb) (0.4.3)
Requirement already satisfied: ibis-framework~=10.1 in /opt/conda/lib/python3.11/site-packages (from vastdb) (10.8.0)
Requirement already satisfied: pyarrow-hotfix==0.7 in /opt/conda/lib/python3.11/site-packages (from vastdb) (0.7)
Requirement already satisfied: flatbuffers in /opt/conda/lib/python3.11/site-packages (from vastdb) (25.9.23)
Requirement already satisfied: packaging in /opt/conda/lib/python3.11/site-packages (from vastdb) (23.2)
Requirement already satisfied: pandas in /opt/conda/lib/python3.11/site-packages (from vastdb) (2.1.1)
Requirement already satisfied: requests in /opt/conda/lib/python3.11/site-packages (from vastdb) (2.32.5)
Requirement already satisfied: xmltodict in /opt/conda/lib/python3.11/site-packages (from vastdb) (1.0.2)
Requirement already satisfied: backoff==2.2.1 in /opt/conda/lib/python3.11/site-packages (from vastdb) (2.2.1)
Requirement already satisfied: typing-extensions in /opt/conda/lib/python3.11/site-packages (from adbc_driver_manager) (4.8.0)
Requirement already satisfied: atpublic>=2.3 in /opt/conda/lib/python3.11/site-packages (from ibis-framework~=10.1->vastdb) (6.0.2)
Requirement already satisfied: parsy>=2 in /opt/conda/lib/python3.11/site-packages (from ibis-framework~=10.1->vastdb) (2.2)
Requirement already satisfied: python-dateutil>=2.8.2 in /opt/conda/lib/python3.11/site-packages (from ibis-framework~=10.1->vastdb) (2.8.2)
Requirement already satisfied: sqlglot!=26.32.0,>=23.4 in /opt/conda/lib/python3.11/site-packages (from ibis-framework~=10.1->vastdb) (27.27.0)
Requirement already satisfied: toolz>=0.11 in /opt/conda/lib/python3.11/site-packages (from ibis-framework~=10.1->vastdb) (0.12.0)
Requirement already satisfied: tzdata>=2022.7 in /opt/conda/lib/python3.11/site-packages (from ibis-framework~=10.1->vastdb) (2023.3)
Requirement already satisfied: charset_normalizer<4,>=2 in /opt/conda/lib/python3.11/site-packages (from requests->vastdb) (3.3.0)
Requirement already satisfied: idna<4,>=2.5 in /opt/conda/lib/python3.11/site-packages (from requests->vastdb) (3.4)
Requirement already satisfied: urllib3<3,>=1.21.1 in /opt/conda/lib/python3.11/site-packages (from requests->vastdb) (1.26.20)
Requirement already satisfied: certifi>=2017.4.17 in /opt/conda/lib/python3.11/site-packages (from requests->vastdb) (2023.7.22)
Requirement already satisfied: pytz>=2020.1 in /opt/conda/lib/python3.11/site-packages (from pandas->vastdb) (2023.3.post1)
Requirement already satisfied: six>=1.5 in /opt/conda/lib/python3.11/site-packages (from python-dateutil>=2.8.2->ibis-framework~=10.1->vastdb) (1.16.0)

Insert Data

import pyarrow as pa
import vastdb
from adbc_driver_manager import dbapi
import datetime as dt

# Define parameters, for example:

VAST_ADBC_DRIVER_PATH = '/home/jovyan/christian/libadbc_driver.so'
VASTDB_ENDPOINT = 'http://172.200.202.40'
AWS_ACCESS_KEY_ID = 'P7BEKS9TSY51OATTOOB6'
AWS_SECRET_ACCESS_KEY = 'YK7SGtjOR93zxuK1tozQCjSF/Dyl3sH974uml+6b'
BUCKET_NAME = 'cneundorf-db'
SCHEMA_NAME = 'test'
TABLE_NAME = 'vectors_103'

# Create the table and insert data using VastDB SDK, for more information https://github.com/vast-data/vastdb_sdk?tab=readme-ov-file

session = vastdb.connect(
    endpoint=VASTDB_ENDPOINT,
    access=AWS_ACCESS_KEY_ID,
    secret=AWS_SECRET_ACCESS_KEY)

with session.transaction() as tx:
    bucket = tx.bucket(BUCKET_NAME)
    # Create the schema in the bucket.
    schema = bucket.schema(SCHEMA_NAME) or bucket.create_schema(SCHEMA_NAME)

    # Create the table.
    dimension = 5
    columns = pa.schema([("id", pa.int64()),
                         ("vec", pa.list_(pa.field(name="item", type=pa.float32(), nullable=False), dimension)),
                         ('vec_timestamp', pa.timestamp('us'))])
    table = schema.table(TABLE_NAME) or schema.create_table(TABLE_NAME, columns)
    # Insert a few rows of data.
    arrow_table = pa.table(schema=columns, data=[
        [1, 2, 3],
        [[1,2,3,4,5], [6, 7, 8, 9, 10], [11, 12, 13, 14, 15]],
        [dt.datetime(2024, 4, 10, 12, 34),
         dt.datetime(2024, 4, 11, 12, 34),
         dt.datetime(2024, 4, 13, 12, 34)]
    ])
    table.insert(arrow_table)

import vastdb
import pyarrow as pa
import datetime as dt

# --- Assume these variables are defined ---
# VASTDB_ENDPOINT = "your_endpoint_url"
# AWS_ACCESS_KEY_ID = "your_access_key"
# AWS_SECRET_ACCESS_KEY = "your_secret_key"
# BUCKET_NAME = "cneundorf-db"
# SCHEMA_NAME = "test"
# TABLE_NAME = "vectors_101"
# ------------------------------------------

session = vastdb.connect(
    endpoint=VASTDB_ENDPOINT,
    access=AWS_ACCESS_KEY_ID,
    secret=AWS_SECRET_ACCESS_KEY
)

print("Connecting to VAST...")
with session.transaction() as tx:
    print(f"Starting transaction {tx.txid}...")
    bucket = tx.bucket(BUCKET_NAME)

    # Get or create the schema
    schema = bucket.schema(SCHEMA_NAME, fail_if_missing=False) or bucket.create_schema(SCHEMA_NAME)
    print(f"Using schema: {SCHEMA_NAME}")

    # Define the table structure
    dimension = 5
    columns = pa.schema([
        ("id", pa.int64()),
        ("vec", pa.list_(pa.field(name="item", type=pa.float32(), nullable=False), dimension)),
        ('vec_timestamp', pa.timestamp('us'))
    ])

    # Get or create the table
    table = schema.table(TABLE_NAME, fail_if_missing=False) or schema.create_table(TABLE_NAME, columns)

    print(f"Using table: {TABLE_NAME}")

    # Insert a few rows of data.
    arrow_table = pa.table(schema=columns, data=[
        [1, 2, 3],
        [[1.0, 2.0, 3.0, 4.0, 5.0], [6.0, 7.0, 8.0, 9.0, 10.0], [11.0, 12.0, 13.0, 14.0, 15.0]],
        [dt.datetime(2024, 4, 10, 12, 34),
         dt.datetime(2024, 4, 11, 12, 34),
         dt.datetime(2024, 4, 13, 12, 34)]
    ])


    # The transaction is automatically committed when exiting the context
    print("Inserting data...")
    table.insert(arrow_table)
    print("Data inserted.")

print("Transaction committed.")

Connecting to VAST...
Starting transaction 65953105481905796...
Using schema: test
Using table: vectors_103
Inserting data...
Data inserted.
Transaction committed.

Query the Vector Database

# Query the table using the ADBC driver.

def run_query(query):
    with dbapi.connect(
        driver=VAST_ADBC_DRIVER_PATH, db_kwargs= {
            "vast.db.endpoint": VASTDB_ENDPOINT,
            "vast.db.access_key": AWS_ACCESS_KEY_ID,
            "vast.db.secret_key": AWS_SECRET_ACCESS_KEY}
                                           ) as connection:
        with connection.cursor() as cursor:
            cursor.execute(query)
            display(cursor.fetch_arrow_table().to_pandas())

full_table_name = f'"{BUCKET_NAME}/{SCHEMA_NAME}"."{TABLE_NAME}"'

Select all the rows.

run_query(
    f"SELECT * FROM {full_table_name};"
)

	id	vec	vec_timestamp
0	1	[1.0, 2.0, 3.0, 4.0, 5.0]	2024-04-10 12:34:00
1	2	[6.0, 7.0, 8.0, 9.0, 10.0]	2024-04-11 12:34:00
2	3	[11.0, 12.0, 13.0, 14.0, 15.0]	2024-04-13 12:34:00

Similarity Search

Metric	Best Suited Use Cases
Cosine Similarity	- Text Similarity: Document search, plagiarism detection, topic modeling (where magnitude of word counts doesn’t matter as much as the overall direction/topic). - Recommendation Systems: Finding items or users with similar preferences, regardless of how many items they liked. - High-Dimensional Data: Often performs well in sparse, high-dimensional spaces where magnitude variations might be less meaningful than directional alignment.
Euclidean Distance	- Image Recognition: Pixel-level comparisons or feature vector comparisons where exact spatial distance between features is important. - Geospatial Data: Finding nearest neighbors in geographical spaces. - Low-Dimensional Data: Generally more intuitive and effective when the number of dimensions is smaller and the absolute difference in feature values is significant. - Anomaly Detection: Identifying data points that are “far” from clusters of normal data.
Negative Inner Product	- Neural Network Embeddings: Often used directly in models like BERT, where the output vectors are designed such that a higher inner product (and thus a less negative inner product) indicates higher similarity, combining both magnitude and direction. - Learning-to-Rank Systems: When a model is trained to maximize this specific score for relevant pairs. - General Similarity: In scenarios where both the direction and the magnitude of the vectors contribute meaningfully to similarity (e.g., if longer vectors represent more “intensity” or “confidence” in a certain direction).

Euclidian distance

run_query(
    f"""
        SELECT * FROM {full_table_name}
        WHERE vec_timestamp > '2023-04-10 12:34:00'
        ORDER BY
        array_distance(vec, [1.5, 2.5, 3.5, 4.5, 5.5]::FLOAT[5])
        LIMIT 2;
    """
)

	id	vec	vec_timestamp
0	1	[1.0, 2.0, 3.0, 4.0, 5.0]	2024-04-10 12:34:00
1	2	[6.0, 7.0, 8.0, 9.0, 10.0]	2024-04-11 12:34:00

Negative inner product distance

run_query(
    f"""
        SELECT * FROM {full_table_name}
        WHERE vec_timestamp > '2023-12-11 11:30:00'
        ORDER BY
        array_negative_inner_product(vec, [1.5, 2.5, 3.5, 4.5, 5.5]::FLOAT[5])
        LIMIT 2;
    """
)

	id	vec	vec_timestamp
0	3	[11.0, 12.0, 13.0, 14.0, 15.0]	2024-04-13 12:34:00
1	2	[6.0, 7.0, 8.0, 9.0, 10.0]	2024-04-11 12:34:00

Cosine distance

run_query(
    f"""
        SELECT * FROM {full_table_name}
        WHERE vec_timestamp > '2023-04-10 12:34:00'
        ORDER BY
        array_cosine_distance(vec, [1.5, 2.5, 3.5, 4.5, 5.5]::FLOAT[5])
        LIMIT 2;
    """
)

	id	vec	vec_timestamp
0	1	[1.0, 2.0, 3.0, 4.0, 5.0]	2024-04-10 12:34:00
1	2	[6.0, 7.0, 8.0, 9.0, 10.0]	2024-04-11 12:34:00

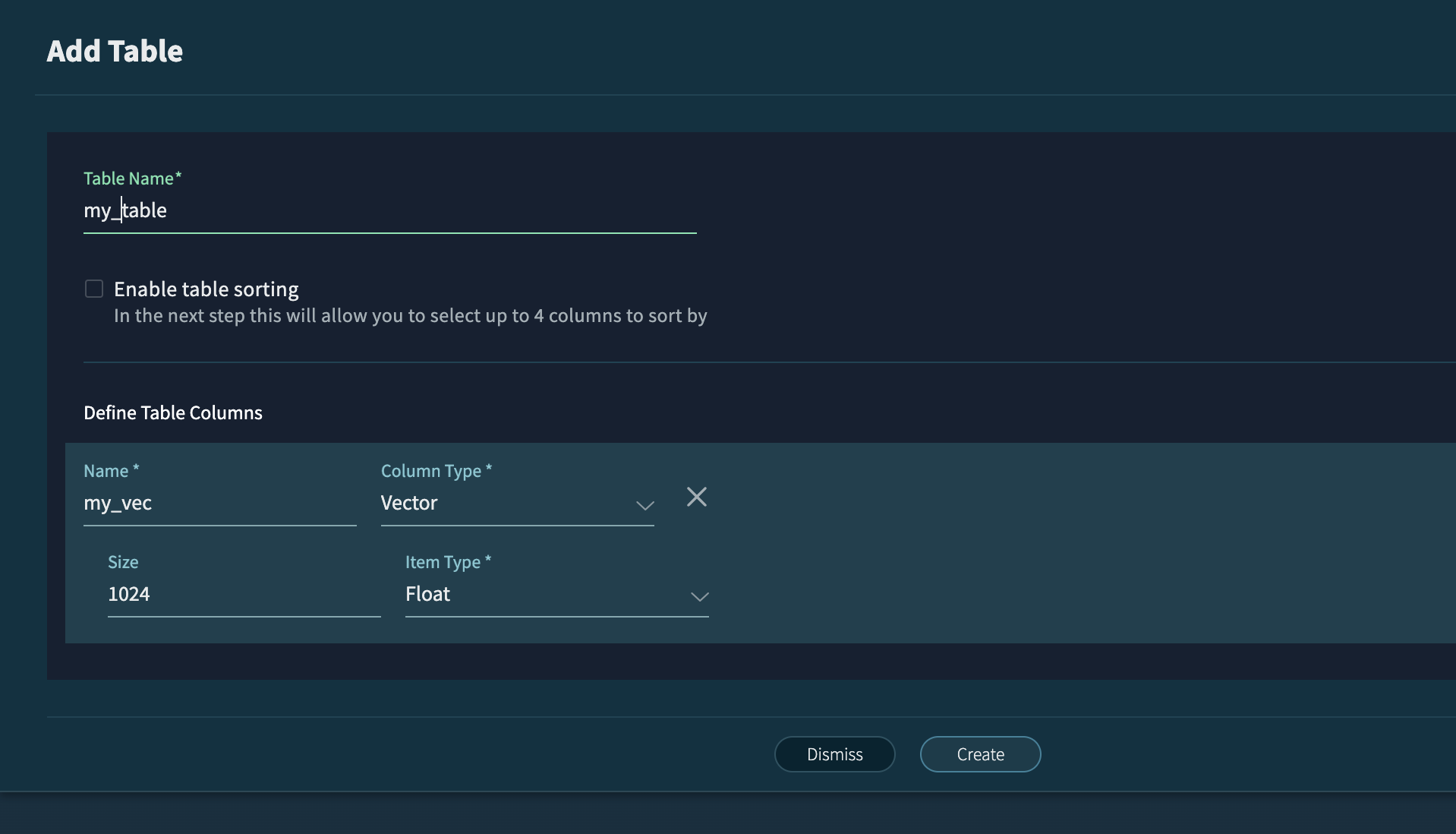

Using the Vast Management Interface to create a Vector Table

A Vector Table is a standard VastDB table that has a vector column and additional columns as needed. Please see the screenshot, below:
